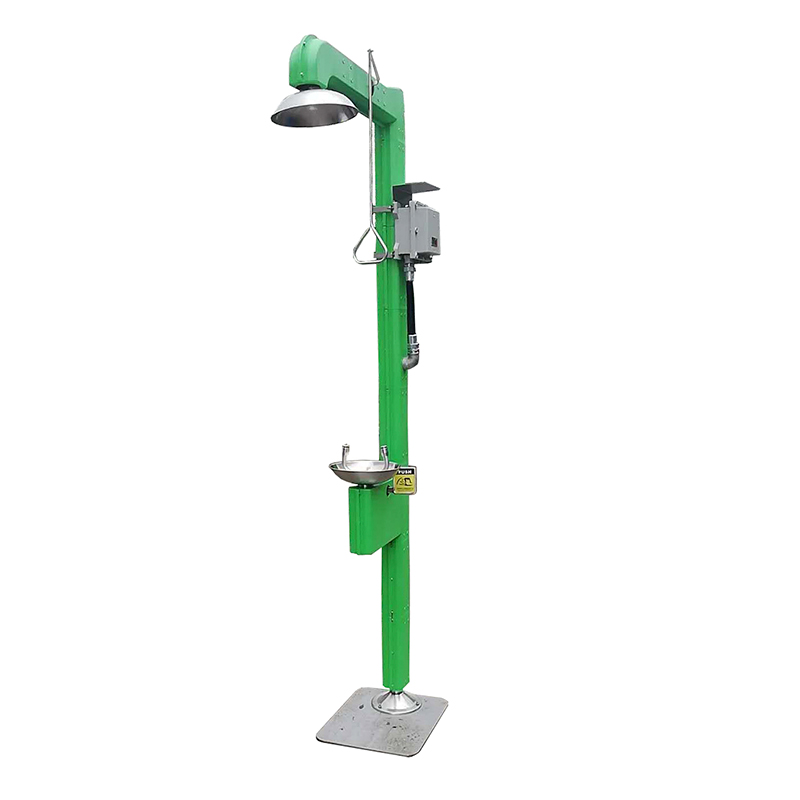

Heat Traced Combination Eye/Face Wash and Drench Shower DAAO6615-E

  • Height: 2410mm
  • Material: stainless steel 304 (SS316L is optional) +ABS engineering plastic Shell+PP insulation
  • Pipe Wall Thickness: 2.5mm
  • Function: eye washing, body showering, water heating.
  • Working pressure: 0.2MPa-0.6MPa
  • Working environment temperature: -25 ° C to 35 ° C
  • Inlet size: NPT 1 1/4″
  • Drain size: NPT 1 1/4″
  • Voltage:220V/50Hz(customizable)
  • Power: 200Watt(customizable)
  • Explosion proof level: Ex II T4-T6
  • Eyewash flow rate: ≥11.4L/min
  • Shower flow rate: ≥75.7L/min
  • Certificate & Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
Category:

●The electric heating cable adopts a low-temperature self-limiting electric heating cable. The maximum temperature of the eyewash tube does not exceed 38 degrees, which can effectively ensure that the internal water temperature of the eyewash tube will not be too high due to the continuous heating of the electric heating cable and the eye nerves of the injured person will be scalded.
●The temperature control system adopts a thermal resistance temperature controller. The factory set temperature is 35 degrees. When the temperature of the eyewash pipe is higher than 35 degrees, the electric heating cable will automatically power off and stop heating. The dual temperature control system is formed with the self-limiting temperature heating cable to ensure the safety of the equipment.
●Explosion-proof distribution box is equipped with power indicator and working indicator, which can observe whether the equipment is in normal working status in real time.
