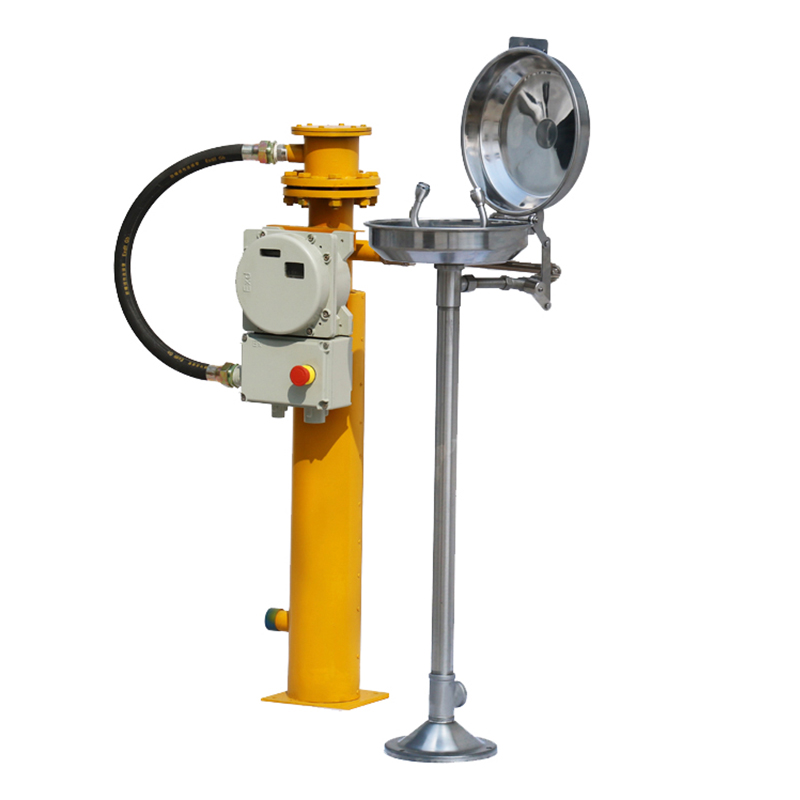

Temperature Controlled Eyewash, Pedestal Mounted, Stainless Steel Bowl & Dust Cover For Cold Climates DAAO6623-EH-X

  • Height: 1310mm
  • Material: 304 / 316L stainless steel + ABS engineering plastic
  • Tube wall thickness: 2.5mm
  • Working pressure: 0.2MPa-0.6MPa
  • Working environment temperature: -30 ℃ to 35 ℃
  • Water inlet size: NPT 1/2 ”
  • Drain size: NPT 1 1/4 ”
  • Power: 6KW
  • Voltage: 380V / 50HZ(customizable)
  • Eyewash flow: ≥11.4L / min
  • Explosion-proof grade: Exd IICT6
  • Protection level: IP65
  • Optional function :Sound and light alarm
  • Standard: American Standard ANSI Z 358.1-2014, EN15154.1 / 2: 2006

The electric heat tracing eyewash is an outdoor antifreeze eyewash, which can be used normally in the range of -25℃-45℃. The outer shell is made of PVC material resistant to acid and alkali, and the inner tube is made of 304 stainless steel.

Material: never rust, wound by high-performance heating electric heating cable, insulation layer is made of polyurethane, the overall color is bright yellow

Nozzle: the punch nozzle is ABS engineering plastic, the color is warning yellow; the punch nozzle is ABS engineering plastic, the color is safe green

Valve: The punching valve is a corrosion-resistant 304 stainless steel ball valve; the punching valve is a 1/2 corrosion-resistant 304 stainless steel three-way ball valve.

Water inlet: for the inch internal rib

Flow rate: According to different pipeline pressures, the flow rate changes accordingly. Within the specified water pressure range, the maximum water output is 114 liters/min.

Use environment: places where hazardous substances are splashed, such as polluted environments such as chemicals, hazardous liquids, solids, and gases
